2 Phase Open-loop Stepper Drive

 /YKD2305M 2 Phase Open-Loop Stepper Drive
Open-Loop Stepper Drive

YKD2305M 2 Phase Open-Loop Stepper Drive

YKD2305M is high performance digital step driver based on YAKO’s new 32-bit DSP technology. It’s designed for various models of two phase 42~60mm (NEMA 17~24) hybrid stepper motors which current are below 3A.

  • Brand:

    Yako

  • Item no.:

    YKD2305M

  • Payment:

    100% T/T payment before delivery

  • Product origin:

    Made in China

  • Product weight:

    0.3kg

  • Lead Time:

    Confirm the PO, normally 7 workdays.
Inquiry now
  • Product Detail

YKD2305M 2 Phase Open-Loop Stepper Drive

YKD2305M is high performance digital step driver based on YAKO’s new 32-bit DSP technology. It’s designed for various models of two phase 42~60mm (NEMA 17~24) hybrid stepper motors which current are below 3A.


Features:

  • 32-bit DSP control, low noise and superior vibration performance
  • 16 constant torque microstep setting, up to 200 microsteps
  • Smooth and accurate current control, effectively reduce motor heating
  • The highest pulse response frequency is 200KHZ
  • When the pulse stops over 200ms, the motor current is halved
  • Excellent smoothness in low frequency microsteps
  • Optically isolated differential signal input, strong anti-interference ability
  • Drive current is adjustable below 3.0A
  • Voltage input range: DC20~50V
  • With over voltage, under voltage etc. fault protection
  • Small size, volume 118*76*33 (mm³), weight 0.3kg
  • Suitable for 42~60mm(NEMA17~24) 2 phase open-loop stepper motors


Applications:

Mainly used in laser cutting machine, laser welding machine, laser marking machine, lock screw machine, medical equipment, robot, dispenser, electronic equipment and engraving machine.

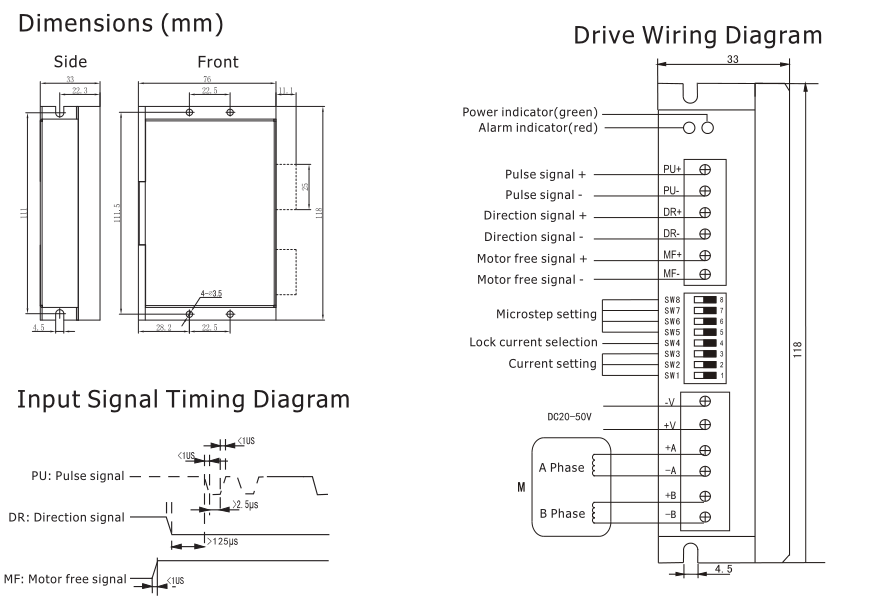

Dimensions:

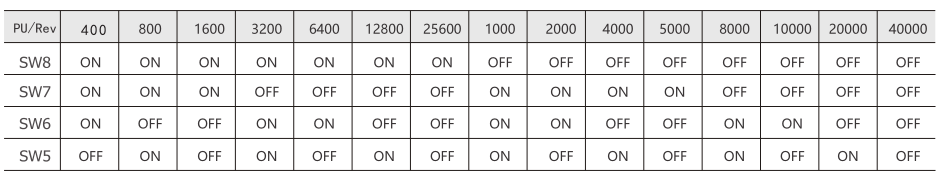

YKD2305M Microstep Setting:

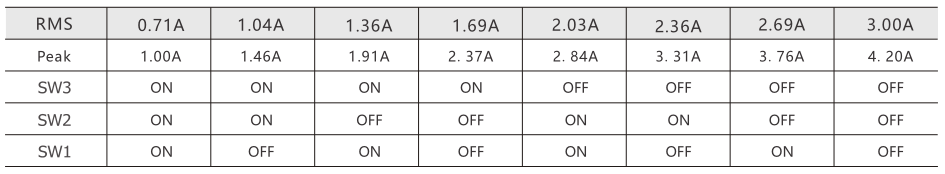

YKD2305M Current Setting:


Terminal Introduction:


Symbol

Function

Specification

PWR

Power indicator

When power on, the green indicator lights up.

ALARM

Fault indicator

When over current, under voltage or over voltage, the red indicator lights up.

PU+

Pulse signal +

Connect with the signal power supply, 5V~24V can drive, need to connect a current limiting resistor with PU- when >5V

PU-

Pulse signal -

Effects on falling edge, the motor moves a step when the pulse goes from high to low. The input resistance is 220Ω. It requires: low level 0~0.5V, high level 4~5V, pulse width>2.5us.

DR+

Direction signal +

Connect with the signal power supply, 5V~24V can drive, need to connect a current limiting resistor with DR- when >5V

DR-

Direction signal -

Used to change motor direction. Input resistance 220Ω, requirements: low

level 0~0.5V, high level 4~5V, pulse width >2.5us

MF+

Motor free signal +

Connect with the signal power supply, 5V~24V can drive, need to connect a current limiting resistorwith MF- when >5V

MF-

Motor free signal -

When effective (low level), the motor coil current is turned off, the driver stops

working and the motor is free.

-V

Power supply-



DC20-50V

+V

Power supply+

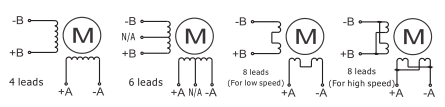

A+

Motor connection

A-

B+

B-
