YKD2405M-Plus 2 Phase Open Loop Stepper Drive DC20~50V

YKD2405M-Plus 2 Phase Open Loop Stepper Drive DC20~50V

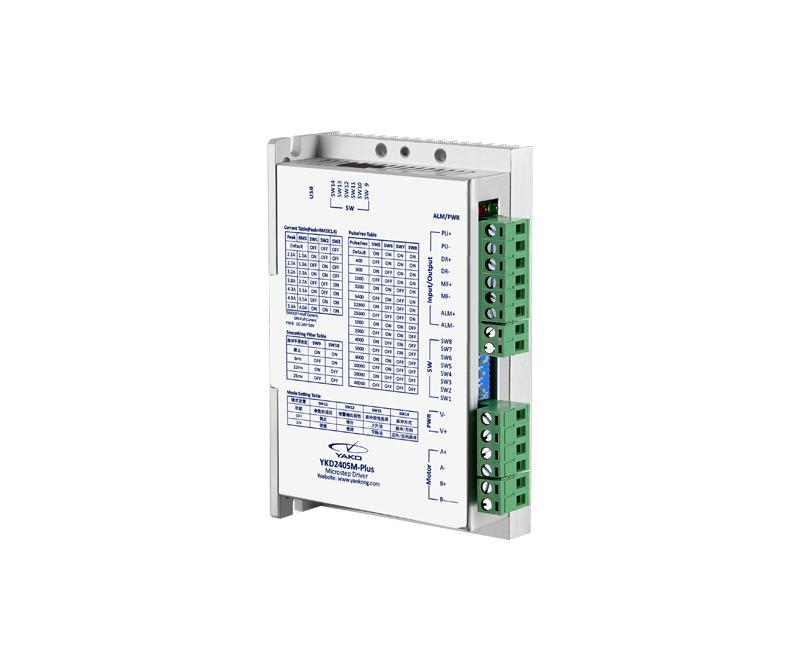

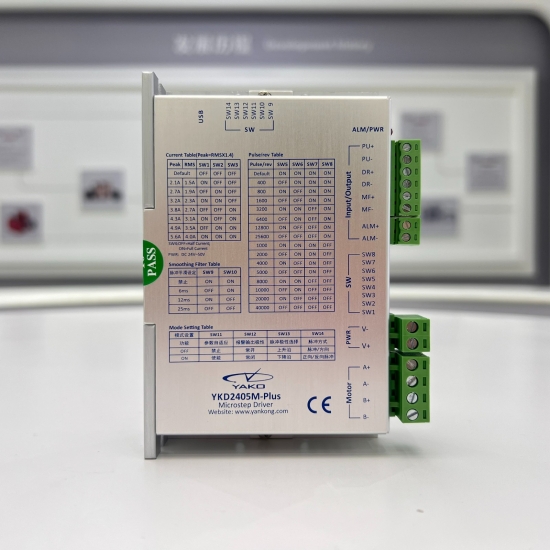

YKD2405M-Plus open loop stepper drive optically isolated differential signal input, strong anti-interference ability, suitable for 42~86mm(NEMA17~34) 2 phase open-loop stepper motors.

Features:

• 32-bit DSP control, low noise and superior vibration performance
• Optically isolated differential signal input, with 5/24V signal, which could match to the signal requirement of different controllers.
• Add motor parameter identification function, which can identify the given control parameters of the motor well and give full play to its best performance
• Add the second function drawing code, which can adjust the pulse smooth time and pulse input mode, etc
• Apply the latest resonance suppression algorithm, with excellent stability on low and medium speed and low frequency subdivision
• Apply the latest current control algorithm, high speed output more than 10%, small motor heating
• 16 torque microstep settings with up to 200 microsteps
• The highest pulse response frequency is 200KHz
• When the pulse stops over 250ms, the motor current is halved
• Excellent smoothness in low frequency microsteps
• Drive current is adjustable below 5.6A
• Voltage input range: DC20~50V
• Small size, volume 118*76*33 (mm³), weight 0.3kg
• Suitable for 42~86mm(NEMA17~34) 2 phase open-loop stepper motors

Application:

Mainly used in medical equipment, dispensing, engraving machines, laser, labeling machines, electronic, advertising equipment etc. automation equipments.

Dimensions:

YKD2405M-Plus Microstep Setting:

YKD2405M-Plus Current Setting:

Terminal Introduction:

Symbol	Function	Specification
PWR	Power indicator	When power on, the green indicator lights up.
ALARM	Fault indicator	When over current, under voltage or over voltage, the red indicator lights up.
PU+	Pulse signal +	Connect with the signal power supply, +5V~+24V can drive, need to connect a current limiting resistor with PU- when >+24V
PU-	Pulse signal -	The motor starts running whenever the level changes from high to low. Requirements: low level 0~0.5V, high level 5~24V, pulse width >2.5us
DR+	Direction signal +	Connect with the signal power supply, +5V~+24V  can drive, need to connect a current limiting resistor with DR- when >+24V
DR-	Direction signal -	Used to change motor direction. Requirements: low level 0~0.5V, high level 5~24V， pulse width >2.5us
MF+	Motor free signal +	Connect to 5V power supply, 5V~24V can drive, need to connect a current limiting resistor when volatge>24V
MF-	Motor free signal -	When effective (low level), the motor coil current is turned off, the driver stops working and the motor is free.
ALM+	Alarm output signal +	The alarm signal is valid when overcurrent, overvoltage, undervoltage or out of tolerance alarms. ALM+ is connected to the pull-up resistor to the positive terminal of the output power supply, and the ALM- is connected to the negative terminal of the output power supply.
ALM-	Alarm output signal -
+V	Power supply +	DC20-50V
-V	Power supply -
+A,-A	Motor connection
+B,-B
